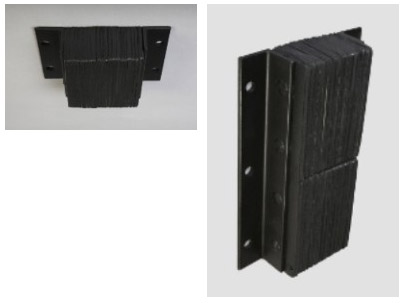

Laminated Rubber Dock Bumpers

A durable method of protecting loading docks in low to medium traffic applications.

Covered by a 1-Year Limited Warranty!
Uses:

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells.
• Customized construction features can accommodate unusual anchoring conditions (i.e. flat plate on one side for welding to dock leveler curb angle).
• Wall protection to absorb forklift impacts

Material & Specifications:

• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4" rods
• Bumper is fastened to dock surface with 3/8" steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 1" diameter.

Installation styles available:

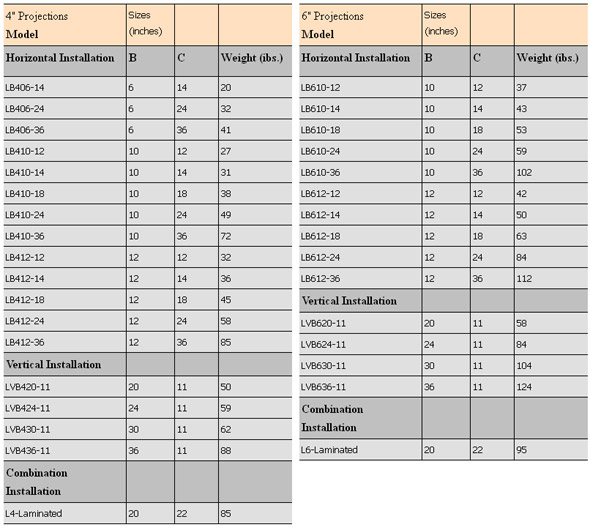

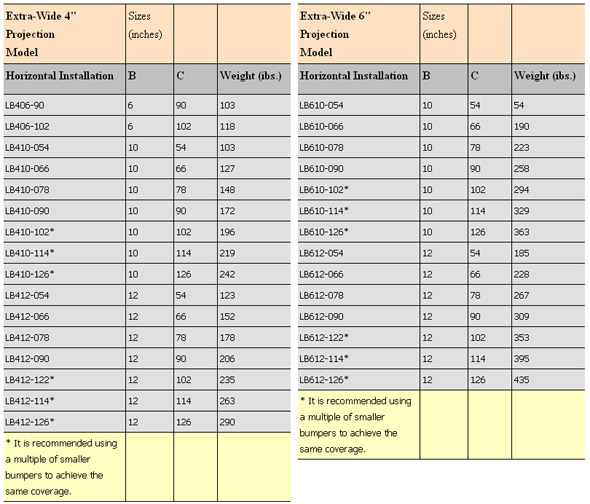

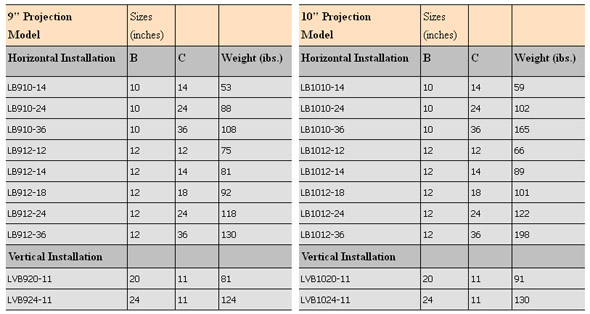

• 4", 6", 9", 10" or 12" projection. If other projections are required, please reference "Dock Bumper Bracketing"
• Horizontal or vertical (vertical generally offers the best protection)
• Standard Model: Angles both sides for anchoring
• P1 Style: Angle one side for anchoring, flat plate on the other for welding (eg. LB410-14/P1)
• P2 Style: Flat plate both sides for welding (eg. LVB420-11/P2)
